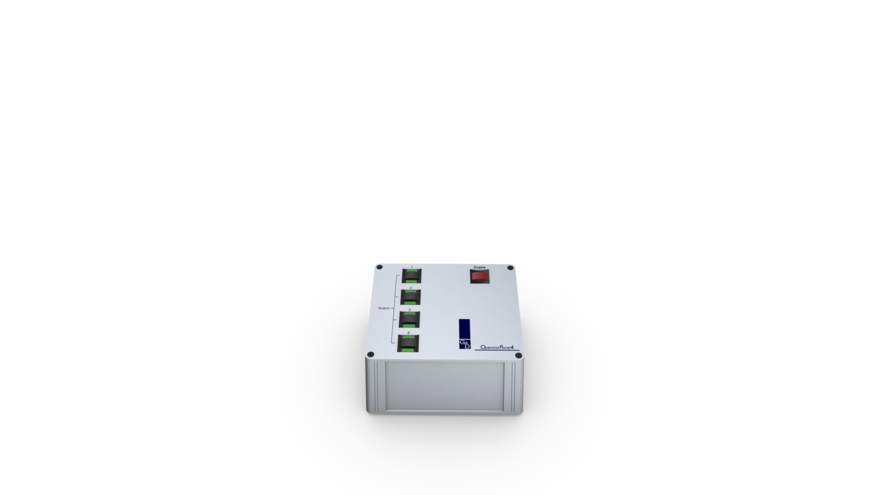

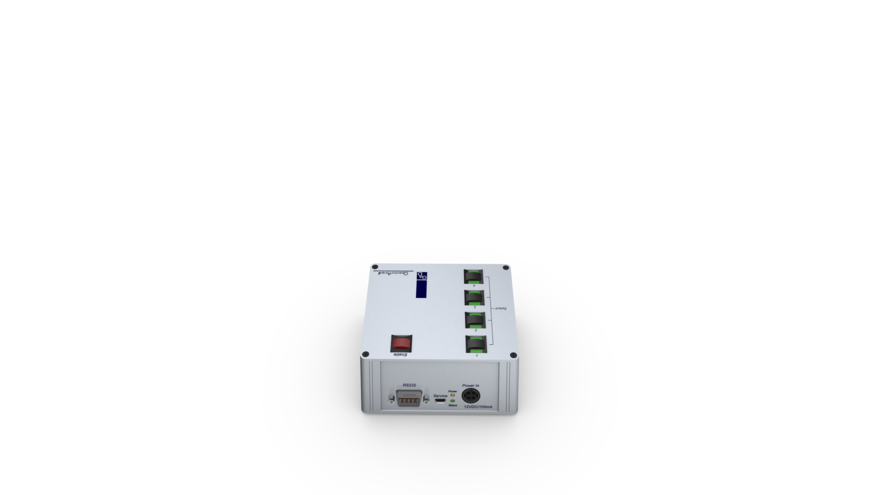

OperatorPanel-4 Desktop (A3200024)

Contact for Price

Add-on for external switching of up to 4 channels of a compatible G&D device Product variants OperatorPanel-4 Desktop OperatorPanel-4-DM Deskmount

Brand

Part number: OperatorPanel-4 Desktop

SKU: OperatorPanel-4 Desktop Categories: , , Tags: , , , ,
Description

Product Details

Device

  • OperatorPanel-2: Switching of two channels of the following KVM switches:
    • DP1.4-MUX2-NT variants
    • DP1.4-MUX2 variants
    • DL-DVI-MUX2-NT variants
    • DL-MUX2 variants
    • TradeSwitch2 variants
  • OperatorPanel-4: Switching of up to four channels of the following KVM switches:
    • DP1.4-MUX4 variants
    • DP1.2-MUX3-ATC variants
    • DL-DVI-MUX4-NT variants
    • DVIMUX4-DL variants
    • DVIMUX4 variants
    • TradeSwitch4 variants
  • Serial interface to the KVM switch
  • The OperatorPanel is connected to a serial interface of the KVM switch from G&D.
  • External power supply
  • DM Deskmount variant: for table installation

Warranty

  • A 3-year, free of charge product guarantee
  • For an additional fee guarantee extension possible

Features

Security features

  • “Enable” key prevents accidental switching

Operation features

  • Switching by pressing a button

Technical Specifications

General
BrandG&D
Product groupKVM add-ons
Product FamilyOperatorPanel
Country of originGermany
Power Supplyno redundancy
Maintenance
Update viaUpdate Wizard (service interface)
Serviceport settings115200bps (8/N/1)
Housing
MaterialAnodised aluminium
Active cooling (fan)no
Width ca.115 mm
Height ca.47 mm
Depth ca.93 mm
IP protection classIP20
Weight ca.0.33 kg
Operating conditions
Operating environment temperature5 °C to 45 °C
Operating air humidity, non-condensing20 % to 80 %
Area of applicationIndoor use
Maximum operating altitude above sea level3,048 m
Storage environment temperature-20 °C to 60 °C
Storage air humidity, non-condensing15 % to 85 %
MTBF100,000 h at 25°C
ConformitiesCE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply
Quantity1
TypeExternal
Input voltage12 VDC
Current consumption0.1 A
Power consumption idle0.1 W
Power consumption max.1.2 W
Heat output idle0.1 W
Heat output max.1.2 W

Source: G&D — OperatorPanel-4 Desktop (A3200024). Verify with manufacturer.
