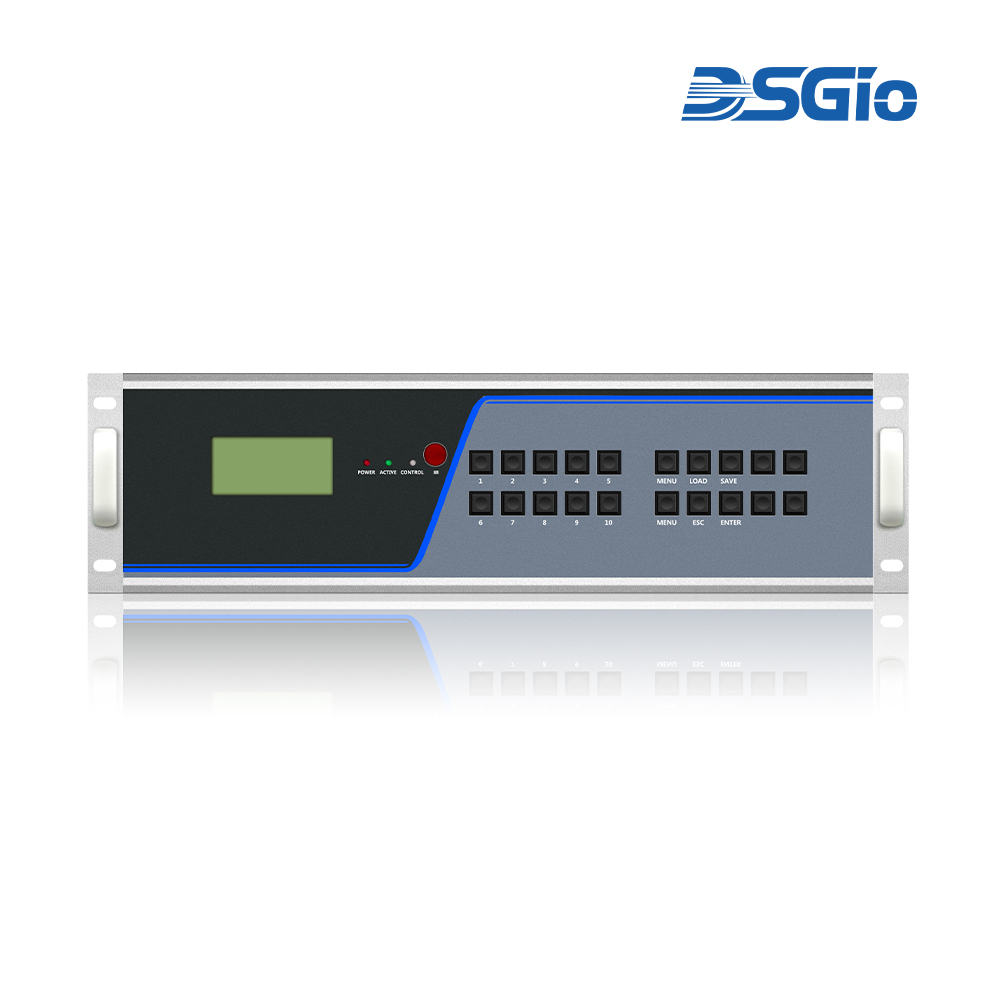

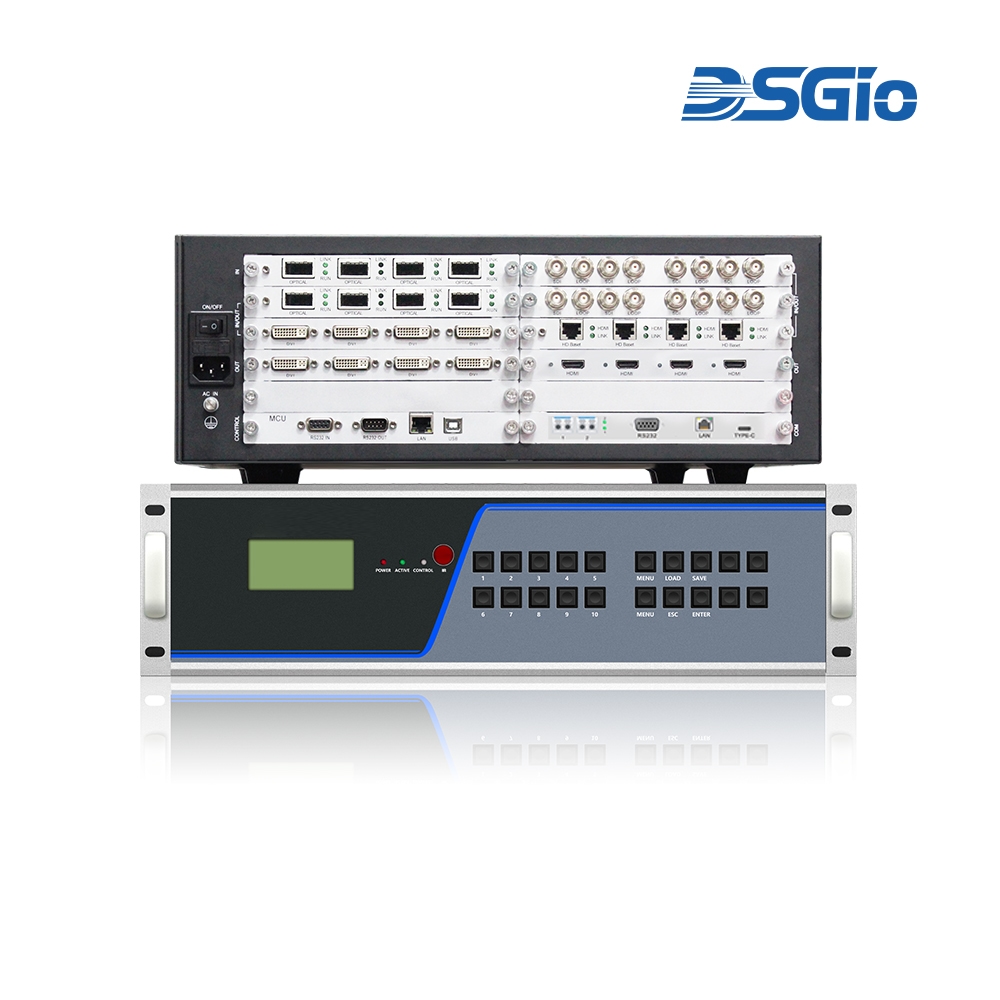

SC-11 11 Slots VW Processor Chassis
Contact for Price
1. Adopting advanced hardware processing structure and no operating system, it completely eliminates IT virus intrusion and h
| Brand | DSGIO |
|---|
Part number: SC-11
Description
Technical Specifications
| Product Type | VW Processor Chassis (StellarConnect) |
| Chassis Size | 3.5U |
| Slot Count | 11 slots |
| Maximum Resolution | 3840×2160@60Hz |
| Fiber Interface | LC connector, 8-channel dual-core per card |
| Fiber Types | Multimode (850nm) or Single-mode (1310nm) |
| Max Distance (Single-mode) | 20km |
| Max Distance (Multimode) | 500m |
| Supported Signals | DVI, HDMI, VGA, YPbPr, CVBS, SDI, HDbaseT, Fiber, IP, DP, HDMI 2.0 |
| Audio | 20Hz-20kHz; AAC, AC3, AIF, FLAC, MP3, OGG, WAV, WMA |
| Serial | RS-232, 9600-115200 bps |
| Network | RJ-45, TCP/IP, 10M-1000M |
| Power Input | 100-240VAC, 50/60Hz |
| Power Consumption | <=1200W |
| Video Delay | <1ms |
| Hot Backup Switching | <=8ms |
| Signal Recovery | <=1s |
| Operating Temperature | 0-50°C |
Source: DSGIO — SC-11 11 Slots VW Processor Chassis. Verify with manufacturer.
