SC-11 11 Slots VW Processor Chassis
Back to products
SC-36 36 Slots VW Processor Chassis
DSGIO

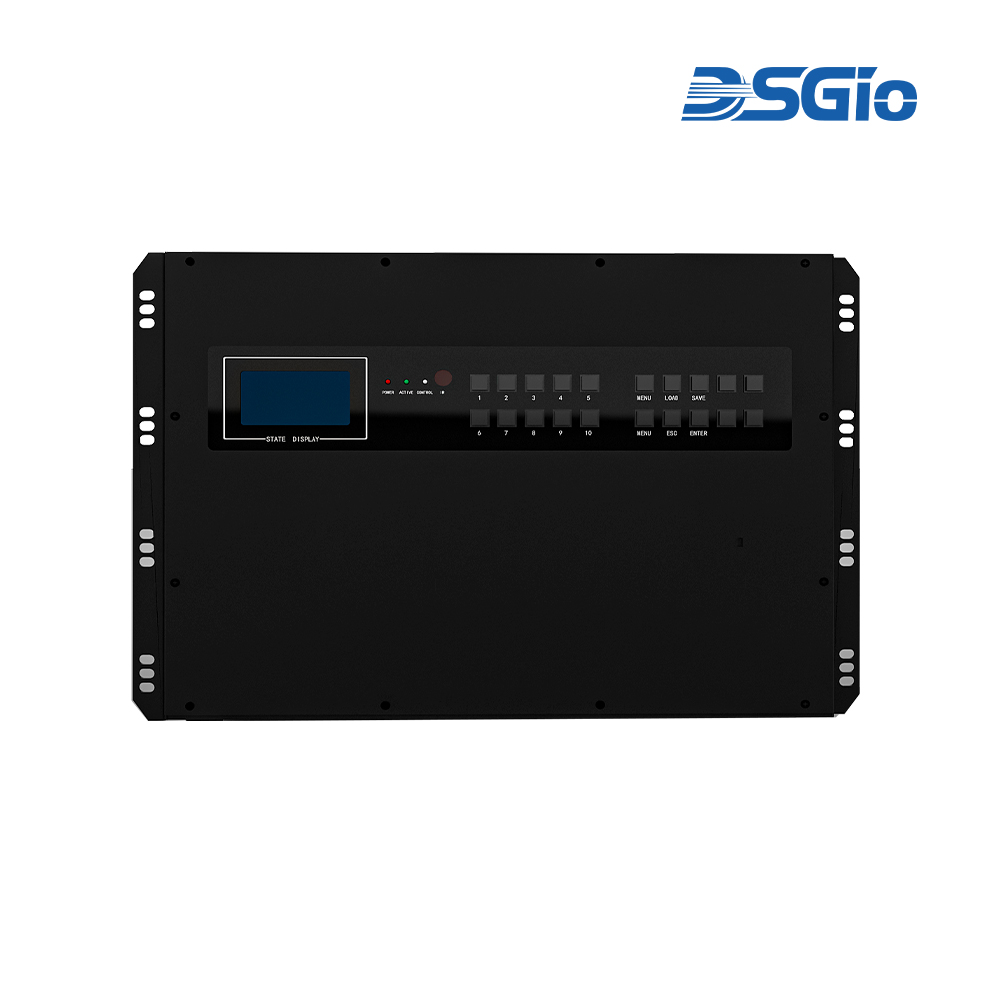

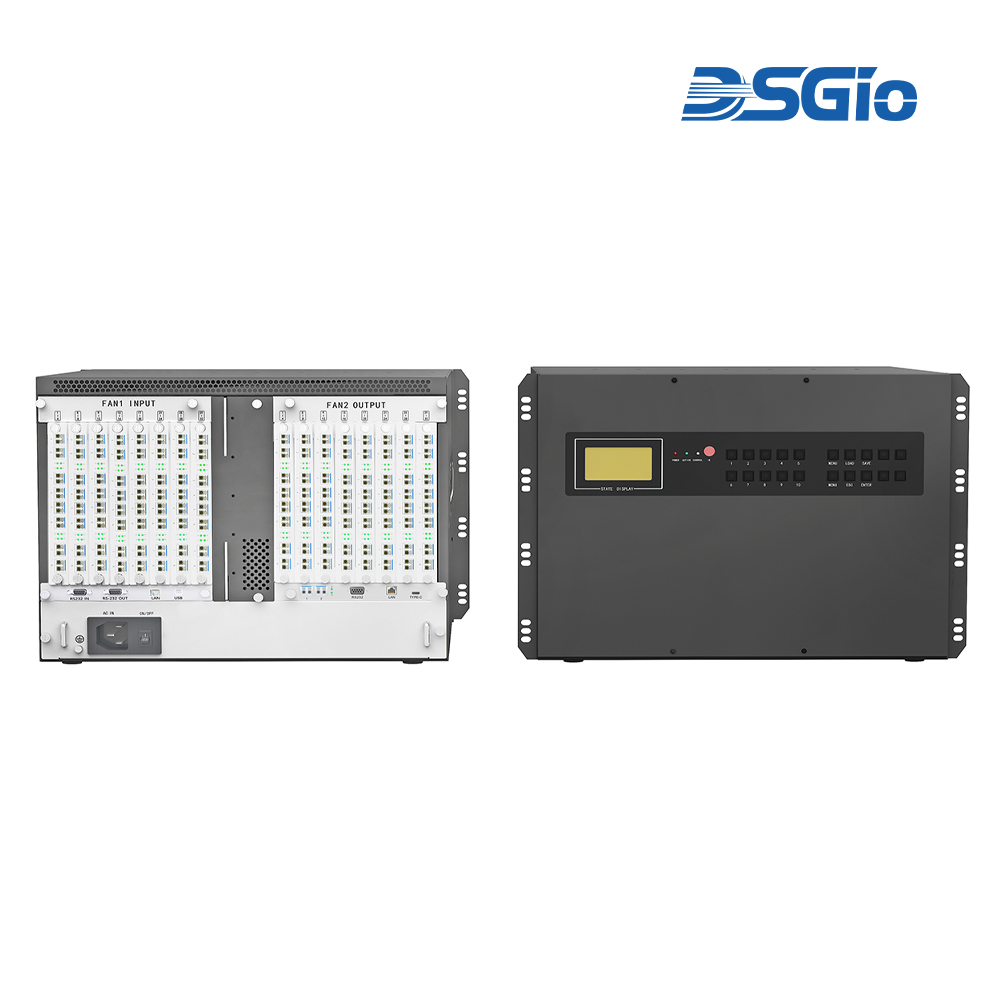

SC-17 17 Slots VW Processor Chassis

1. Adopting advanced hardware processing structure and no operating system, it completely eliminates IT virus intrusion and h

Brand

SKU: SC-17 Category:
Description

Technical Specifications

Product TypeVW Processor Chassis (StellarConnect)
Chassis Size3.5U
Slot Count17 slots
Maximum Resolution3840×2160@60Hz
Fiber InterfaceLC connector, 8-channel dual-core per card
Fiber TypesMultimode (850nm) or Single-mode (1310nm)
Max Distance (Single-mode)20km
Max Distance (Multimode)500m
Supported SignalsDVI, HDMI, VGA, YPbPr, CVBS, SDI, HDbaseT, Fiber, IP, DP, HDMI 2.0
SerialDB9, RS-232, 9600-115200 bps
NetworkRJ-45, TCP/IP, 10M-1000M
Power Input100-240VAC, 50/60Hz
Power Consumption<=1200W
Redundant Power SupplyYes
Operating Temperature0-50°C

Source: DSGIO — SC-17 17 Slots VW Processor Chassis. Verify with manufacturer.
