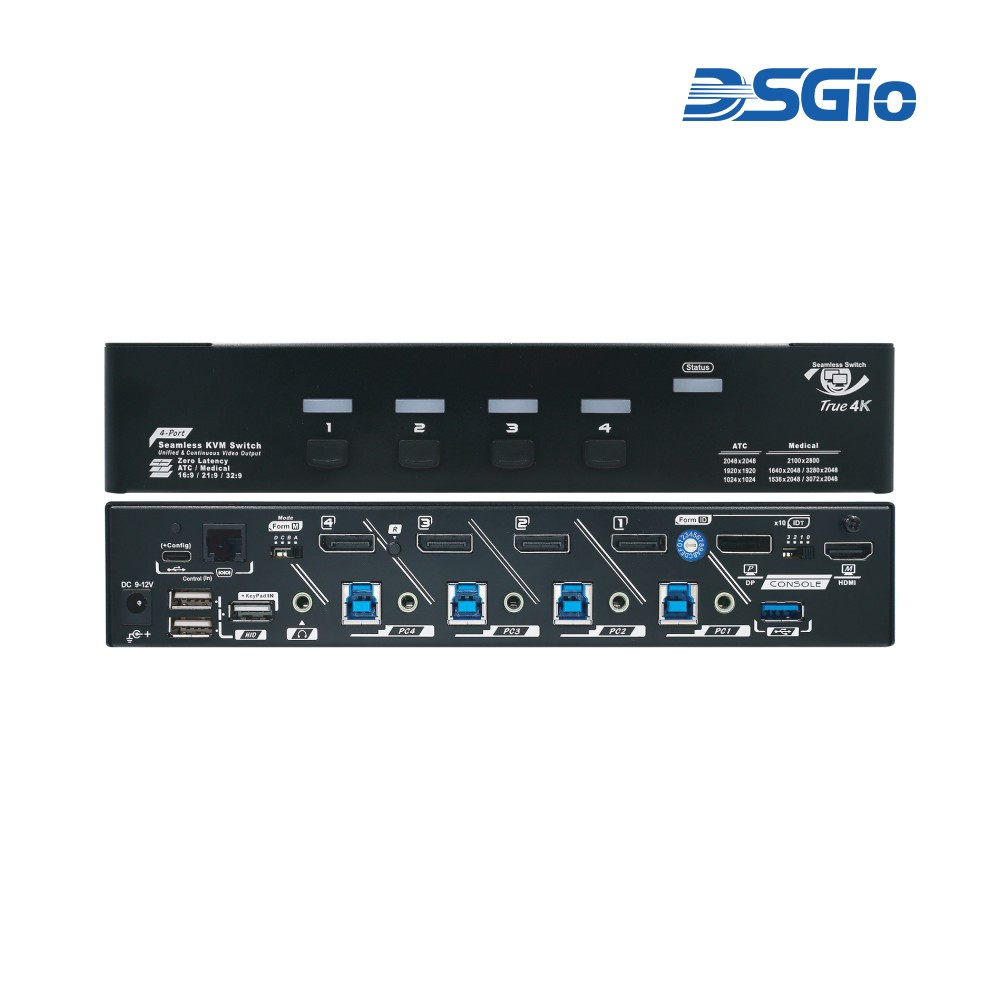

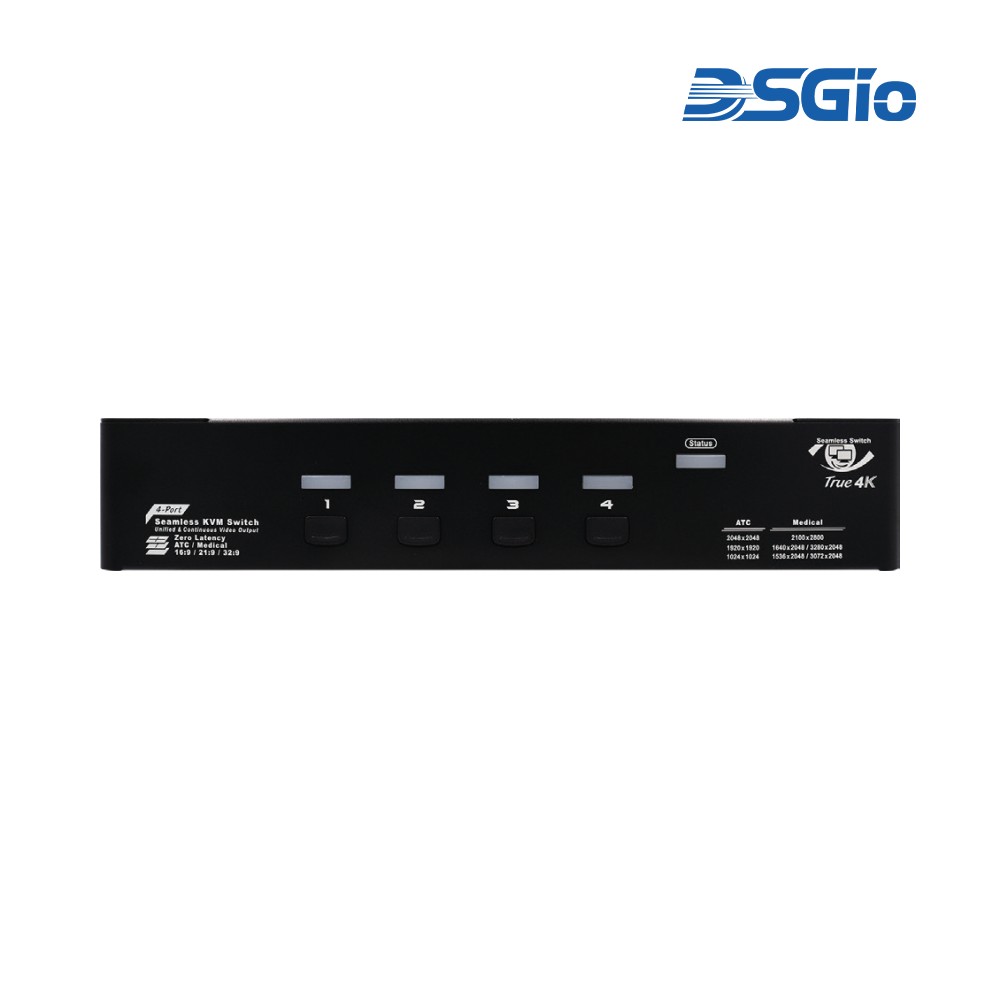

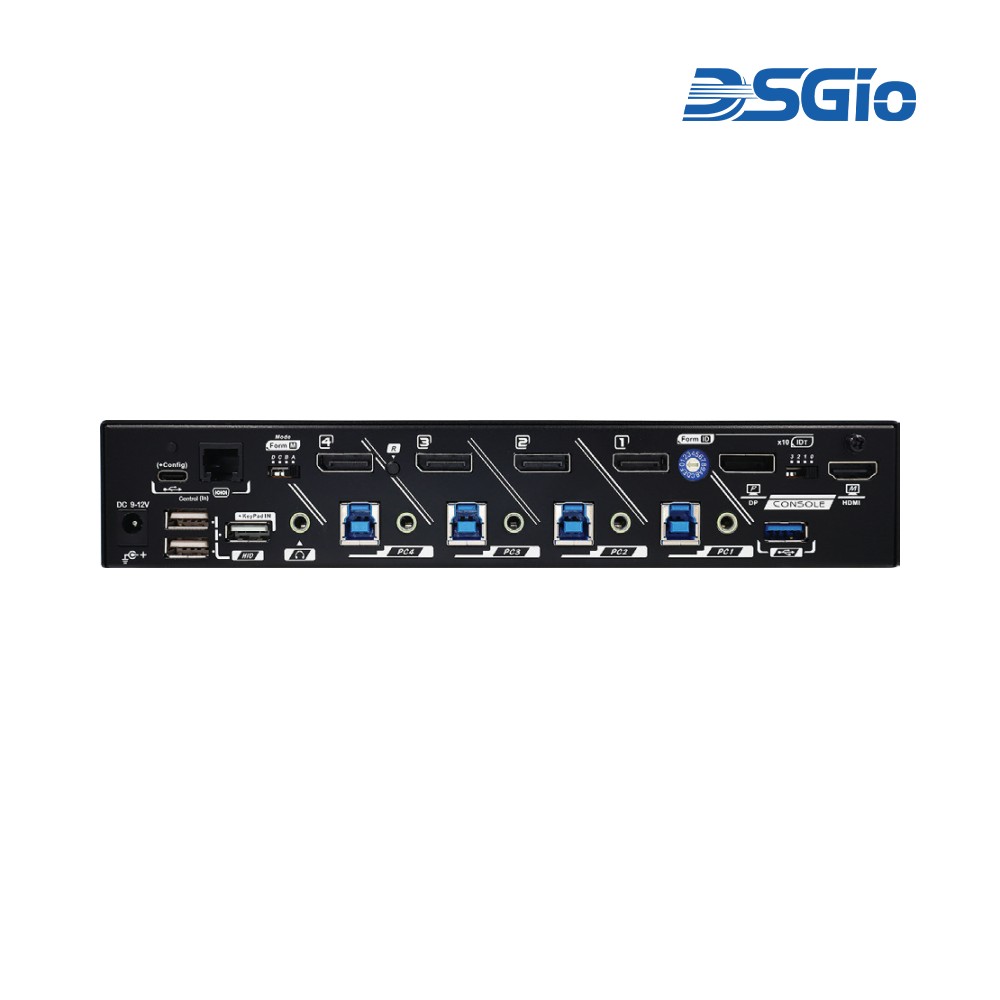

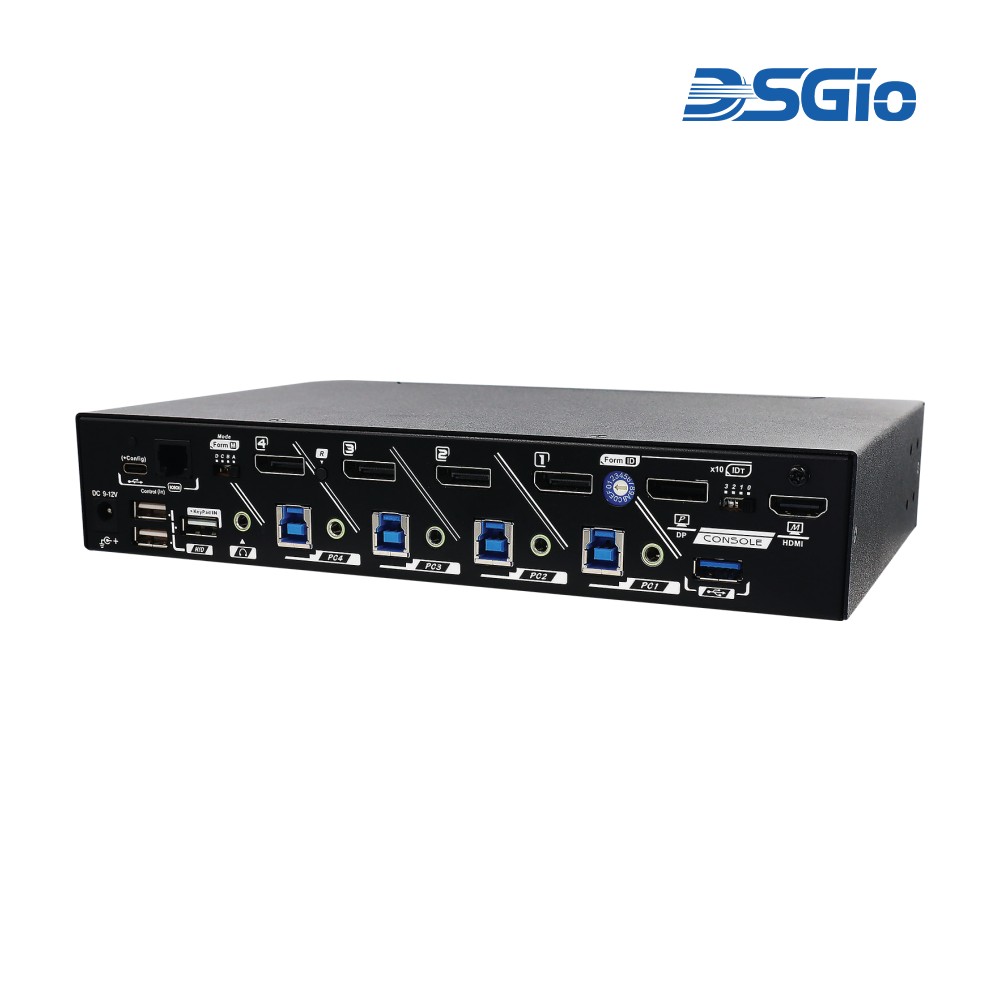

KSW-4K4D-U30 4-Port 4K60 DisplayPort KVM Switch with Seamless Switching, Scaler
Contact for Price
4-Port 4K60 DP KVM Switch with Seamless Switching, Scaler, USB 3.0, Button/Hotkey/Serial/Keypad-IN Control enabling four computers to share a single console with support for resolutions up to 3840×2160@60Hz.
| Brand | DSGIO |
|---|
Part number: KSW-4K4D-U30
Description
Technical Specifications
| Maximum Resolution | 3840×2160@60Hz (4:4:4) |
| Video Standard | DisplayPort 1.2 input; HDMI 2.0 + DisplayPort output |
| HDCP Compliance | HDCP 2.2/1.4 |
| HDR Support | HDR10 |
| Supported Aspect Ratios | 16:9, 21:9, 32:9, 1:1, 4:3 |
| Computer Inputs | 4x DisplayPort, 4x USB 3.2 Gen 1 Type-B, 4x 3.5mm audio |
| Console Outputs | 2x (HDMI 2.0 and DisplayPort) |
| USB Speed | Up to 5Gbps (USB 3.2 Gen 1) |
| Switching Methods | Push button, hotkey, keypad, serial control |
| Serial Baud Rates | 8 selectable (9600–115200 bps) |
| EDID Settings | 1 Auto + 63 custom settings |
| Scaling | 4-stage image scaler |
| Operating Systems | macOS, Linux, Chrome OS, Windows 8 or later |
Source: DSGIO — KSW-4K4D-U30 4-Port 4K60 DisplayPort KVM Switch with Seamless Switching, Scaler. Verify with manufacturer.
Source: DSGIO — KSW-4K4D-U30. Verify with manufacturer.
